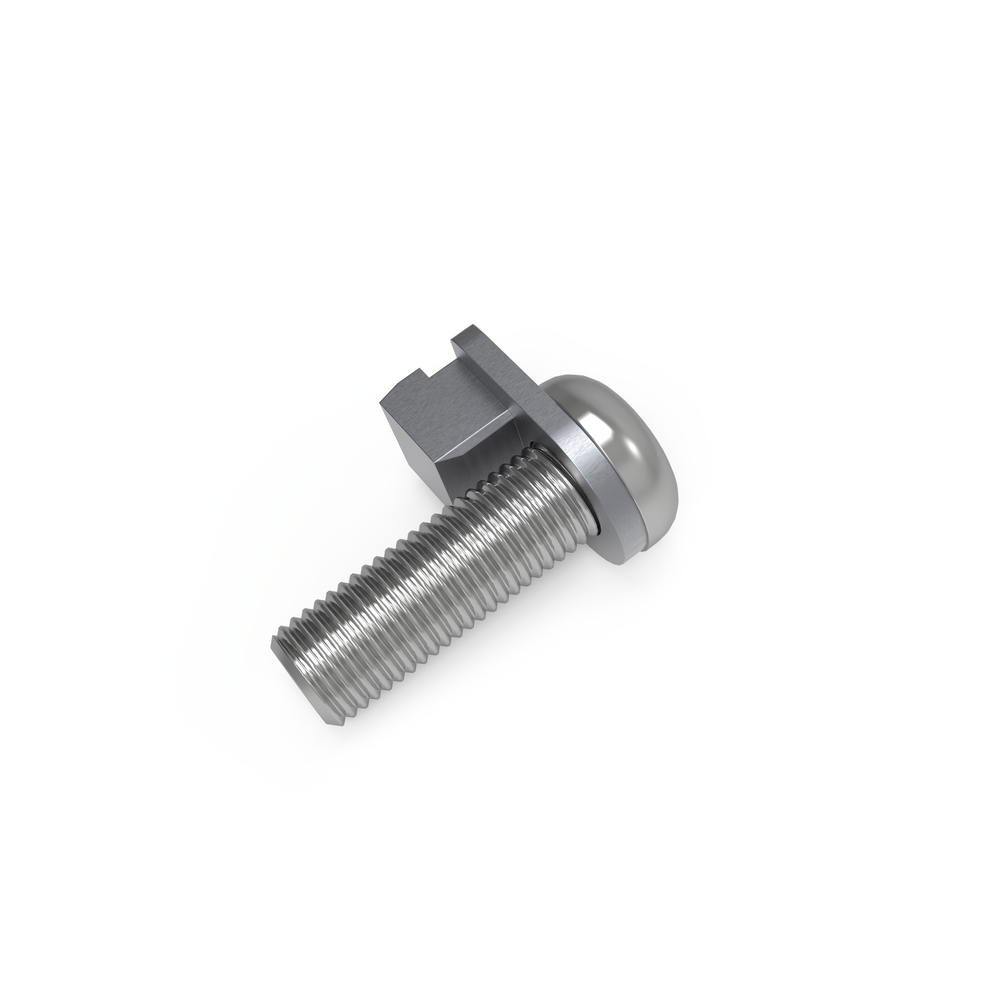

Tornillo autoroscante 30 GD

Artículo Nr.
21.0897/0
Nuevo
1.65 €
Descripción
  • Aluminium, Pressure die-casting, bright
  • Anti-twist lock with fillister head screw
  • Weight = 0.012 kg/piece
IVA no incluido.
Datos técnicos
  • Aluminium, Pressure die-casting, bright
  • Anti-twist lock with fillister head screw
  • Weight = 0.012 kg/piece
Aplicaciones

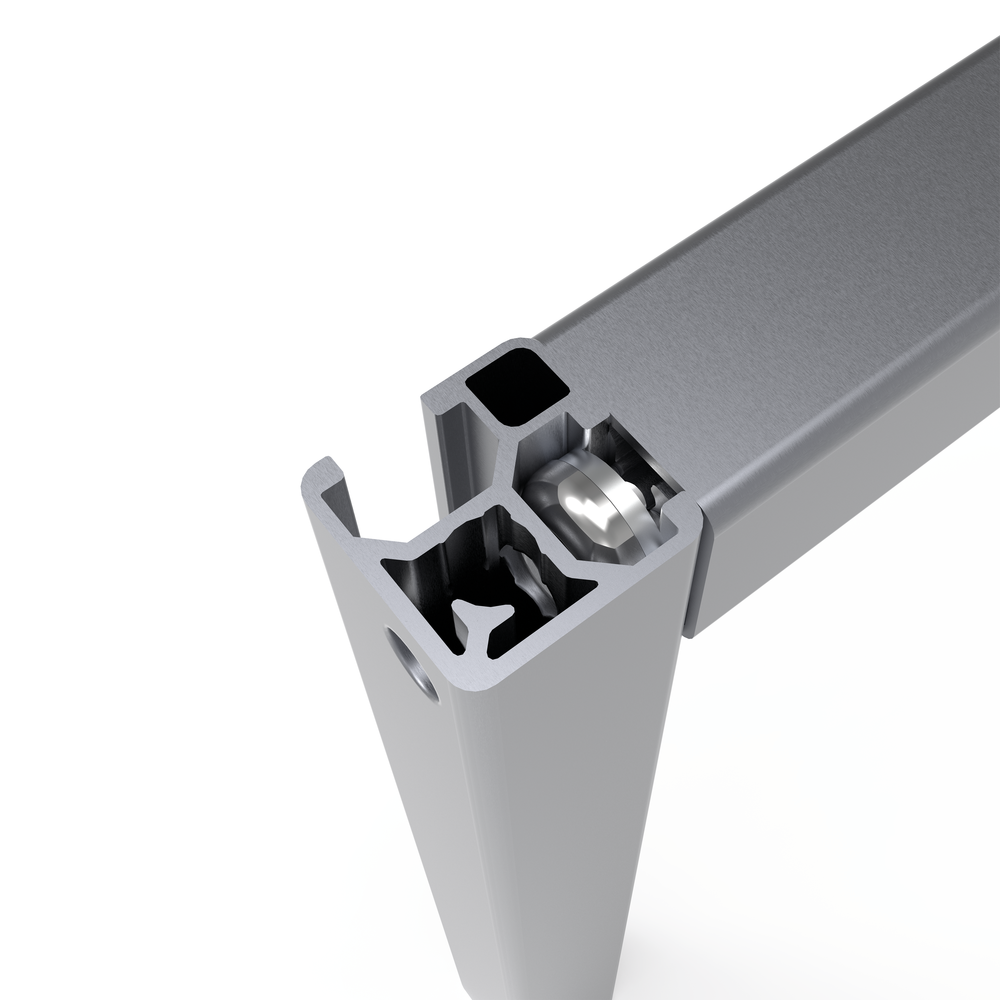

  • Connection of Series 30 profiles
Ensamblaje
  • Insert thread M8 x 25 into the centre hole of the profile
  • Insert bore Ø 7 mm in profile 2
  • Fasten the screw to the profile 1 with the anti-twist lock and insert it into profile 2
  • Use Allen key to pull through bore Ø 7 mm
  • Recommended tightening torque: 20 Nm
  • The bore Ø 7 mm can be closed with plug 7 part no. 22.1215/1, should be used with our closed t-slot profiles
Solicita más información
