Lifting column made of aluminium, anodized, conductive, silicone-free, with plastic glides

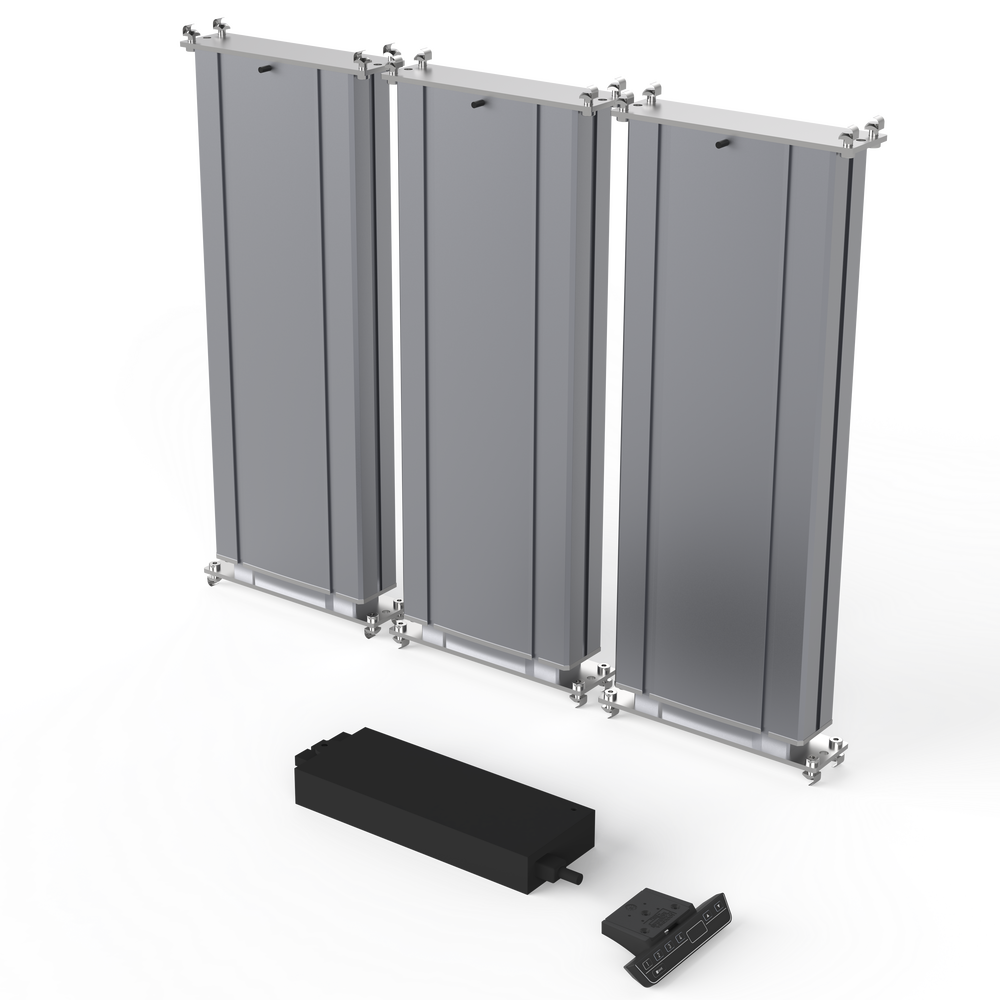

Scope of delivery:
- 3x lifting column with 1.8 m connection cable to the control unit
- 1x synchronized control with 2.5 m mains cable
- 1x handset with 1.8 m connection cable to the control unit
- Mounting accessories
Installation height(H)/stroke(h): 590mm/400mm
Lifting speed 10 mm/s
Synchronous control 230V/50Hz/5A for controlling up to 3 lifting columns (up to 12 on request)
Duty cycle 10 % (S3) with periodic operation and max. load (2 min. ON / 18 min. OFF)
Manual switch for up/down function and 4 storable positions with 3-digit display
Cable supply per column: L=1700mm, cable exit on the large profile on the inside
Max. System load 10500 N
Load capacity per lifting column:
- maximum lifting force 3500 N
- maximum side load (Mby) stat.1000 Nm, dyn. 500 Nm
- maximum lateral load (Mbx) stat.300 Nm, dyn. 200 Nm
Weight = 29.572 kg/piece
Este producto no se encuentra actualmente disponible para su compra online, pero puedes solicitar información.
Solicita información sobre Electric lift system ELS 400 M-3
Datos técnicos
Lifting column made of aluminium, anodized, conductive, silicone-free, with plastic glides
Scope of delivery:
- 3x lifting column with 1.8 m connection cable to the control unit
- 1x synchronized control with 2.5 m mains cable
- 1x handset with 1.8 m connection cable to the control unit
- Mounting accessories
Installation height(H)/stroke(h): 590mm/400mm
Lifting speed 10 mm/s
Synchronous control 230V/50Hz/5A for controlling up to 3 lifting columns (up to 12 on request)
Duty cycle 10 % (S3) with periodic operation and max. load (2 min. ON / 18 min. OFF)
Manual switch for up/down function and 4 storable positions with 3-digit display
Cable supply per column: L=1700mm, cable exit on the large profile on the inside
Max. System load 10500 N
Load capacity per lifting column:
- maximum lifting force 3500 N
- maximum side load (Mby) stat.1000 Nm, dyn. 500 Nm
- maximum lateral load (Mbx) stat.300 Nm, dyn. 200 Nm
Weight = 29.572 kg/piece
Aplicaciones
The lifting column is completely conductive and suitable for ESD applications
Assembly tables
Assembly lines
Office desks, as well as furniture in general
Mechanical engineering (general)
Synchronous operation up to 12 columns possible on request
Ensamblaje
Installation position: preferably pressing, others possible after arrangement
Optional:
Molex extension cable 1.2 m Art. no.: 27.0109/0
Handset extension cable 1 m Art. no.: 27.0110/0
Adapter plate control unit PXD compact Art. no.: 320798/0
Mounting plate for memory handswitch + display Art. no.: 320086/0
