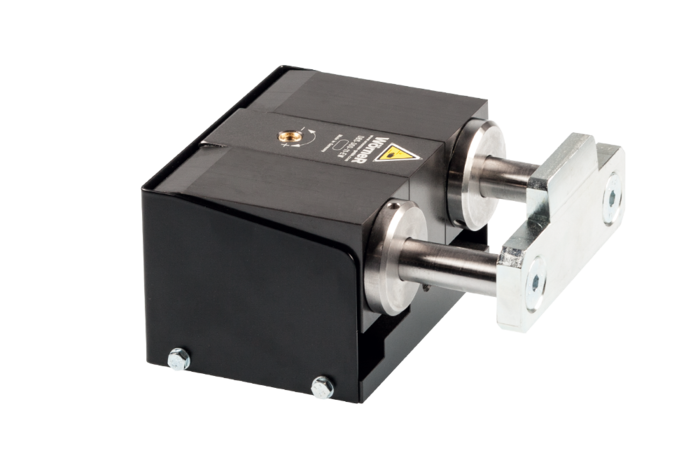

DBS-300

Functional description

The separating stop places one or multiple pallets in a defined position and clears them individually for downstream transport. The stopping process is damped for a gentle deceleration. The lowering movement is pneumatically driven. Proximity switches can be employed to identify the upper and lower positions of the stop.

Este producto no se encuentra actualmente disponible para su compra online, pero puedes solicitar información.

Solicita información
Value
  • flexible use by large number of freely configurable variants
  • gentle deceleration and stopping of pallet through integrated damping system
  • force of impact reduced by up to 95% in comparison to undamped stoppers
  • precise positioning of the pallet through reliable running into the final position and no opposing force in the end position
  • wide range of applications thanks to simple and infinitely adjustable damping force
Variants
  • lowering stroke: 11 mm
  • single-acting/double-acting (EW/DW)
  • heat-resistant/cold-resistant (H/K)
  • prepared for stop position sensing (S)
  • customer-specific solutions
  • various accessories
Application Area
  • Propelling force, max.: 206 N
  • Propelling force, min.: 8,3 N

Damping values

Coefficient of friction
Conveyor speed m/min Pallet weight kg
6 663
9 469
12 369
18 278
24 159
30 103
36 74
Conveyor speed m/min Pallet weight kg
6 300
9 270
12 250
18 225
24 140
30 95
36 70
Conveyor speed m/min Pallet weight kg
6 123
9 128
12 135
18 150
24 106
30 78
36 60

* Reference friction coefficient
