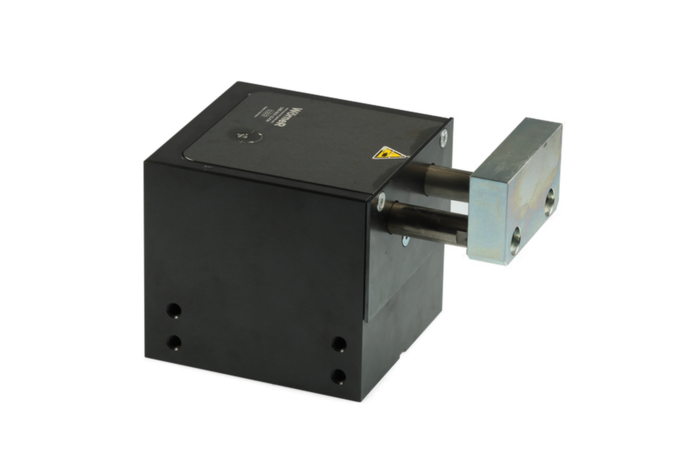

DBS-900

Functional description

The stopper places one or multiple pallets in a defined position and clears them individually for downstream transport.The stopping process is damped for a gentle deceleration.Proximity switches can be employed to identify the upper and lower positions of the stop.

Este producto no se encuentra actualmente disponible para su compra online, pero puedes solicitar información.

Solicita información
Value
  • gentle deceleration and stopping of pallet through integrated damping system
  • force of impact reduced by up to 95 % in comparison to undamped stoppers
  • precise positioning of the pallet through reliable running into the final position and no opposing force in the end position
Variants
  • lowering stroke: 15 mm
  • single-acting/double-acting
  • heat-resistant/cold-resistant
  • tilt stop, plastic stop
  • prepared for stop position sensing
  • customer-specific solutions
  • various accessories
  • RD: damping stroke reduced to 40 mm, hence fully compatible with DBS-450
Application Area
  • Propelling force, max.: 700 N

Damping values

Coefficient of friction
Conveyor speed m/min Pallet weight kg
6 900
9 800
12 730
18 410
24 250
30 180
36 90
Conveyor speed m/min Pallet weight kg
6 345
9 379
12 411
18 289
24 199
30 154
36 80
Conveyor speed m/min Pallet weight kg
6 132
9 160
12 192
18 164
24 131
30 112
36 63

* Reference friction coefficient
