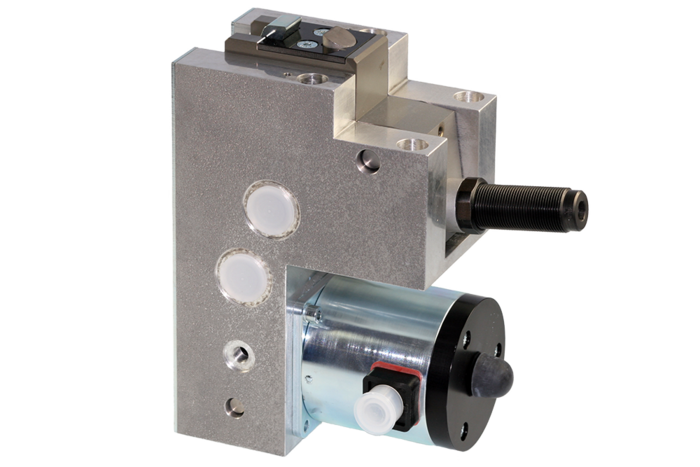

DEL-1100

1,106.68 €
Functional description

The separating stop places one or multiple pallets in a defined position and clears them individually for downstream transport. The stopping process is damped for a gentle deceleration. Proximity switches can be employed to identify the upper and retracted positions of the stop (in some models already integrated).

IVA no incluido.
Value
  • gentle deceleration and stopping of pallet through integrated damping system
  • force of impact reduced by up to 95% in comparison to undamped stoppers
  • precise positioning of the pallet through reliable running into the final position and integrated anti-bounce stop
  • high efficiency and low operating costs due to electromagnetic drive
  • low installation cost by eliminating the pneumatic system
  • simple release of material flow (e.g. in setup or reverse mode) by lowering stop plate and anti-bounce stop simultaneously
  • short cycle times through high lowering speed of stop plate
Variants
  • mechanical lock in lower position
  • sensors to detect horizontal position of stop plate (damper extended/retracted)
  • sensors to detect vertical position of stop plate (raised/lowered)
  • lowering stroke: 9.3 mm
  • customer-specific solutions
  • various accessories
Application Area
  • Propelling force, max.: 419 N
  • Propelling force, min.: 65 N

Damping values

Coefficient of friction
Conveyor speed m/min Pallet weight kg
6 1100
9 1000
12 850
18 750
24 500
Conveyor speed m/min Pallet weight kg
6 522
9 605
12 601
18 623
24 447
Conveyor speed m/min Pallet weight kg
6 220
9 298
12 341
18 433
24 350

* Reference friction coefficient
