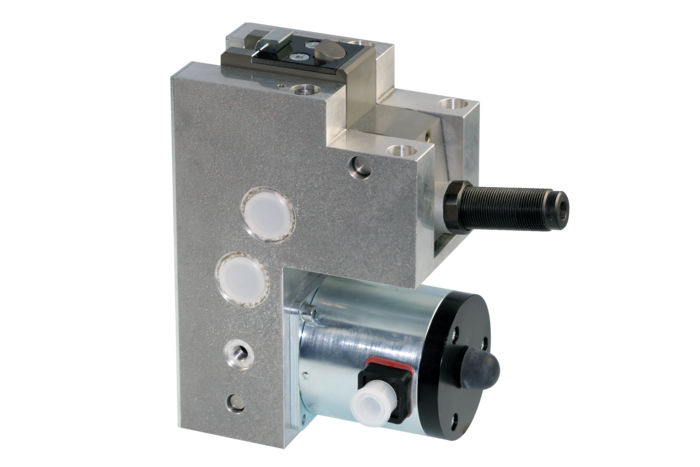

DEL-1800

Functional description

The separating stop places one or multiple pallets in a defined position and clears them individually for downstream transport. The stopping process is damped for a gentle deceleration. Proximity switches can be employed to identify the upper and retracted positions of the stop (in some models already integrated).

Este producto no se encuentra actualmente disponible para su compra online, pero puedes solicitar información.

Solicita información
Value
  • gentle deceleration and stopping of pallet through integrated damping system
  • force of impact reduced by up to 95% in comparison to undamped stoppers
  • precise positioning of the pallet through reliable running into the final position and integrated anti-bounce stop
  • high efficiency and low operating costs due to electromagnetic drive
  • low installation cost by eliminating the pneumatic system
  • simple release of material flow (e.g. in setup or reverse mode) by lowering stop plate and anti-bounce stop simultaneously
  • short cycle times through high lowering speed of stop plate
Variants
  • mechanical lock in lower position
  • sensors to detect horizontal position of stop plate (damper extended/retracted)
  • sensors to detect vertical position of stop plate (raised/lowered)
  • customer-specific solutions
  • various accessories
Application Area
  • Propelling force, max.: 419 N
  • Propelling force, min.: 100 N

Damping values

Coefficient of friction
Conveyor speed m/min Pallet weight kg
6 1800
9 1700
12 1550
18 800
Conveyor speed m/min Pallet weight kg
6 854
9 1029
12 1069
18 665
Conveyor speed m/min Pallet weight kg
6 361
9 508
12 622
18 462

* Reference friction coefficient
