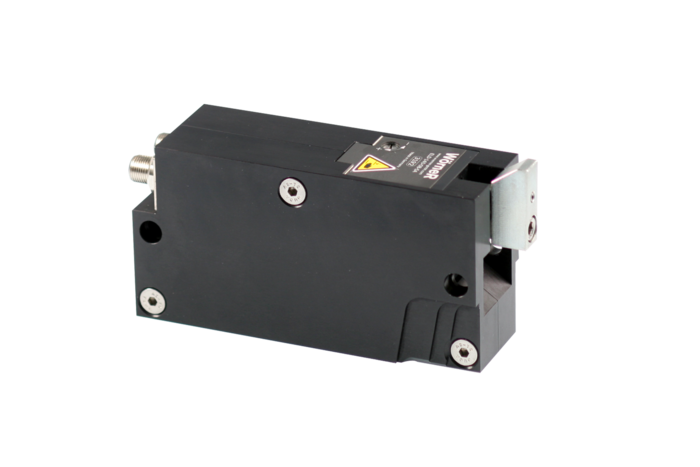

ELD-140

Functional description

The separating stop places one or multiple pallets in a defined position and clears them individually for downstream transport. The stopping process is damped for a gentle deceleration. The lowering movement is carried out by an electromechanical drive. Proximity switches can be employed to identify the upper and lower positions of the stop (in some models already integrated).

Este producto no se encuentra actualmente disponible para su compra online, pero puedes solicitar información.

Solicita información
Value
  • gentle deceleration and stopping of pallet through
  • integrated damping system
  • force of impact reduced by up to 95% in comparison to undamped stoppers
  • precise positioning of the pallet through reliable running into the final position and no opposing force in the end position
  • wide range of applications thanks to simple and infinitely adjustable damping force
  • high efficiency and low operating costs due to electromechanical drive
  • low installation costs by eliminating the pneumatic system
  • low noise
  • simplified commissioning and maintenance through integrated diagnostic tools (depending on model)
Variants
  • lowering stroke: 8 mm
  • 2x5-pin M12x1 plug
  • plastic stop (KU)
  • customer-specific solutions
  • various accessories
Application Area
  • Propelling force, max.: 90 N
  • Propelling force, min.: 1,5 N

Damping values

Coefficient of friction
Conveyor speed m/min Pallet weight kg
6 269
9 182
12 99
18 51
24 28
30 17
36 12
Conveyor speed m/min Pallet weight kg
6 140
9 120
12 75
18 45
24 26
30 17
36 12
Conveyor speed m/min Pallet weight kg
6 62
9 63
12 45
18 33
24 21
30 14
36 10

* Reference friction coefficient
